Threads

Threads

Exercise 1: Creating Responsive UI

In this exercise you will improve responsiveness of a WPF GUI application using threads.

A thread is a single path of execution within a process.

Create a Project

Create a C# WPF project, named Threads.ResponsiveUi in solution Threads.

dotnet new sln --name Threads
dotnet new wpf --name Threads.ResponsiveUi
dotnet sln add Threads.ResponsiveUi/Threads.ResponsiveUi.csproj

Add the following code to class MainWindow.xaml:

<Window x:Class="Threads.ResponsiveUi.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Canvas>
        <Button Canvas.Left="50" Canvas.Top="60" Content="Submit" Click="ButtonClick" />
        <Button Canvas.Left="50" Canvas.Top="85" Content="Submit Responsive" Click="ResponsiveButtonClick" />
    </Canvas>
</Window>

Add the following code to class MainWindow.xaml.cs:

using System;
using System.Diagnostics;
using System.Threading;
using System.Windows;

namespace Threads.ResponsiveUi
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            PrintThreadingInfoToConsole();
        }

        private static void LengthyOperation()
        {
            int tid = Environment.CurrentManagedThreadId;

            Debug.WriteLine($"Thread {tid} is working ... ");

            Thread.Sleep(7000);

            Debug.WriteLine($"Thread {tid} has finished. ");
        }

        private static void PrintThreadingInfoToConsole()
        {
            var nop = Environment.ProcessorCount;
            Debug.WriteLine($"Your system runs {nop} processors. ");

            var tid = Environment.CurrentManagedThreadId;
            Debug.WriteLine($"Thread {tid} is running ... ");
        }

        private void ButtonClick(object sender, RoutedEventArgs e)
        {
            LengthyOperation();
        }

        private void ResponsiveButtonClick(object sender, RoutedEventArgs e)
        {
            new Thread(LengthyOperation).Start();
        }
    }
}

Run the Project

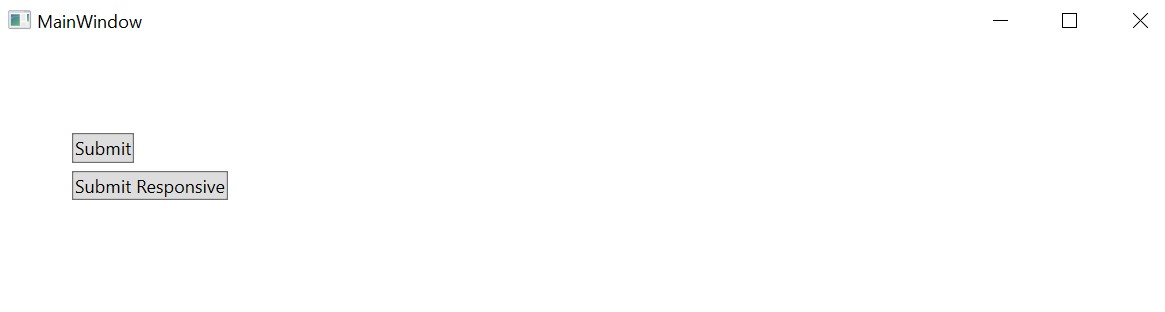

Execute the project and the output similar to the following will appear:

responsive-gui-app

Exercise 2: Creating Threads

In this exercise you will create threads that will execute both static and instance methods in threads via delegates.

Threads are implemented in the kernel and *Windows switches threads not processes*.

Every thread has:

The kernel object:
- It stores information about the thread that is used to perform the context switch. For instance, it contains a copy of the CPU registers.
The thread environment block (TEB)
- It stores information such as thread exception handling chain and thread local-storage.
The user and kernel stacks
- They store stack frames for executing user and kernel code. The user stack is typically 1M and the kernel stack is typically 24k.
DLL notification mechanisms
- Implements mechanisms to inform all DLLs in the process when a thread is created and destroyed. Managed DLLs do not receive these messages. Unmanaged code can disable these messages.

Assigning threads to processors is called the context switch.

In the Windows context switch is performed every 30 ms.

To perform the context switch Windows must:

Save the registers of the currently running thread.
Select one thread from the set of existing threads. If the selected thread is in another process Windows must switch the virtual address space.
Load the registers of the selected thread.
Be aware that Windows usually must populate caches with new code and data !!!

Each CLR process initially has only one thread called the primary thread which starts in method Main and finishes when Main finishes its execution.

The programmers can: Create new threads explicitly or Use threads from the thread pool.

To manage explicit threads, programmers use class Thread.

Threads are started in methods with predefined signatures.

Thread methods receive either no parameters or an object and return void.

A thread can be:

A foreground thread
- Threads used to perform tasks that you want to complete. The application is active until all
A background thread
- The application (foreground threads) do not wait for background threads. When all foreground threads terminate the process will terminate. Background threads are typically used for tasks that depend on foreground threads - e.g. spelling checking is not necessary when the process is terminated.

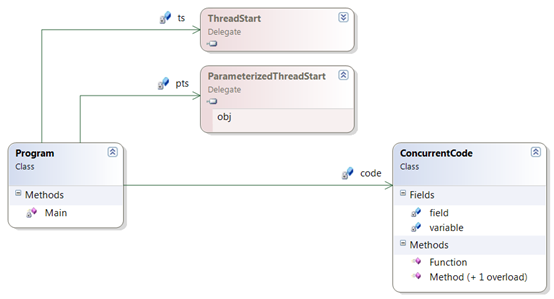

The UML of the application you will create is shown below:

creating-threads

Create a Project

Create a C# Console project, named CreatingThreads in solution Threads.

dotnet new console --name Threads.CreatingThreads
dotnet sln add Threads.CreatingThreads/Threads.CreatingThreads.csproj

Add class ConcurrentCode to the project.
Thread methods have predefined signatures. Add the following code to class ConcurrentCode:

using System;
using System.Threading;

namespace Threads.CreatingThreads
{
    public class ConcurrentCode
    {
        private static int variable = 1;
        private readonly int field = 2;

        public static void Function()
        {
            var name = Thread.CurrentThread.Name;

            Console.WriteLine($"Function: Executing in thread: {name}");
            Console.WriteLine($"Function variable: {variable++}");
            Console.WriteLine("Function: Press any key to terminate.");
            Console.ReadKey();
        }

        public void Method(object? parameter)
        {
            var name = Thread.CurrentThread.Name;
            Console.WriteLine($"Method: Executing in thread: {name}");
            Console.WriteLine($"Method parameter: {parameter}");
            Console.WriteLine($"Method variable: {++variable}");
            Console.WriteLine($"Method field: {field}");
            Console.WriteLine("Method: Press any key to terminate.");
            Console.ReadKey();
        }

        public static void Method(string str, int num)
        {
            var name = Thread.CurrentThread.Name;
            Console.WriteLine($"Method: Executing in thread: {name}");
            Console.WriteLine($"Method str: {str}");
            Console.WriteLine($"Method num: {num}");
            Console.WriteLine("Method: Press any key to terminate.");
            Console.ReadKey();
        }
    }
}

Add the following code to class Program:

using System;
using System.Threading;

namespace Threads.CreatingThreads
{
    public static class Program
    {

        private static readonly ThreadStart ts = new(ConcurrentCode.Function);
        private static readonly ConcurrentCode code = new();
        private static readonly ParameterizedThreadStart pts = new(code.Method);


        static void Main(string[] args)
        {
            var firstThread = new Thread(ts);
            firstThread.Name = "Zlatni konac litnje zore";
            //firstThread.IsBackground = true;
            firstThread.Start();

            var secondThread = new Thread(pts);
            secondThread.Name = "Der goldene Faden des sommerlichen Morgenrotes";
            secondThread.Priority = ThreadPriority.Highest;
            // secondThread.IsBackground = true;
            secondThread.Start(9);

            var i = 3;
            var thirdThread = new Thread(() => { ConcurrentCode.Method("Iva", i); });
            // thirdThread.IsBackground = true;
            i = 7;
            thirdThread.Start();
        }

    }
}

Run the Project

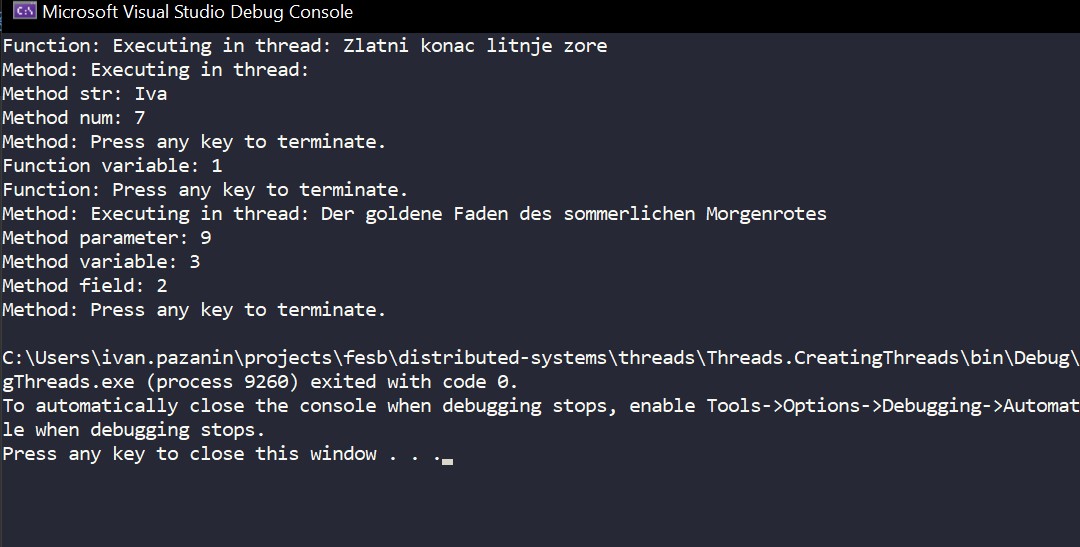

Execute the project and the output similar to the following will appear:

creating-threads-output

Exercise 3: Managing Threads

In this exercise you will manage threads.

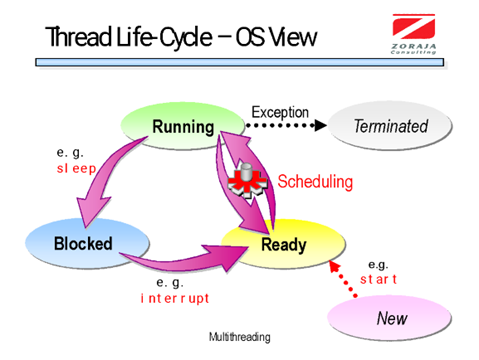

Threads can generally be in three states: running, blocked, and ready.

thread-lifecycle

In this exercise, the following methods from class Thread will be used:

Sleep
- Puts a thread to sleep for a time specified in milliseconds.
SpinWait
- Causes a thread to wait the number of times defined by the iteration parameter.
Interrupt
- Wakes up a sleeping thread by raising an exception in the target thread's code.
Join
- Waits for threads to terminate the execution.

Following methods to manage thread state got deprecated because they might cause unexpected behavior if executed while thread is in critical session.

Abort
- Terminates a thread by raising 2 exceptions in the target thread’s code. Exception will be throw at the end of the finally block one more time if ResetAbort is not called in the catch block.
ResetAbort
- Prevents itself to be terminated.

In this exercise methods above will be avoided by user defined cancellation behavior.

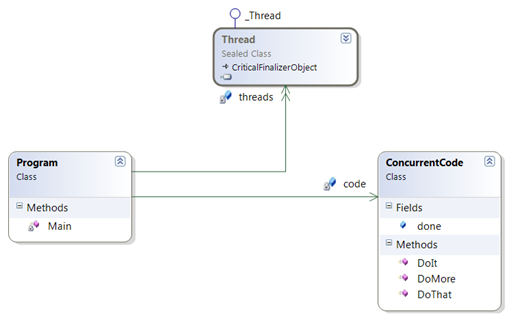

The following are the classes you will implement in this example:

managing-threads-uml

Create a Project

Create a C# Console project, named Threads.ManagingThreads in solution Threads.

dotnet new console --name Threads.ManagingThreads
dotnet sln add .\Threads.ManagingThreads\Threads.ManagingThreads.csproj

Add class ConcurrentCode to the project.
Implement a Class ConcurrentCode, as follows:

using System;
using System.Threading;

namespace Threads.ManagingThreads
{
    public class ConcurrentCode
    {
        public volatile bool done = false;

        public void SleepWhileCodeIsNotDone()
        {
            var managedThreadId = Environment.CurrentManagedThreadId;
            while (!done)
            {
                Console.WriteLine($"SleepWhileCodeIsNotDone ({managedThreadId}): Sleeping for 2s");
                Thread.Sleep(2000);
            }

            Console.WriteLine($"SleepWhileCodeIsNotDone ({managedThreadId}): Finished.");
        }

        public void SleepWhileCancellationIsNotRequested(CancellationToken cancellationToken)
        {
            int managedThreadId = Environment.CurrentManagedThreadId;

            while (!cancellationToken.IsCancellationRequested)
            {
                Console.WriteLine($"SleepWhileCancellationIsNotRequested ({managedThreadId}): Sleeping for 1s");
                Thread.Sleep(1000);
            }

            Console.WriteLine($"SleepWhileCancellationIsNotRequested ({managedThreadId}): Finished.");
        }


        public void DoSleepForLongTime()
        {
            int managedThreadId = Thread.CurrentThread.ManagedThreadId;

            var iterations = 10000000;

            Console.WriteLine($"DoSleepForLongTime ({managedThreadId}): Doing work for {iterations} iterations.");

            Thread.SpinWait(iterations);

            try
            {
                Console.WriteLine($"DoSleepForLongTime ({managedThreadId}): Going to sleep for very long time!");
                Thread.Sleep(Timeout.Infinite);
            }
            catch (ThreadInterruptedException e)
            {
                Console.WriteLine($"DoSleepForLongTime ({managedThreadId}): Sleep interupted!");
                Console.WriteLine($"DoSleepForLongTime ({managedThreadId}): Exception: {e.Message}");
                Console.WriteLine($"DoSleepForLongTime ({managedThreadId}): Finished.");
            }
        }
    }
}

Implement Class Program, as follows:

using System;
using System.Threading;

namespace Threads.ManagingThreads
{
    public static class Program
    {
        public static void Main()
        {
            int mid = Thread.CurrentThread.ManagedThreadId;
            Console.WriteLine("Primary Thread ({0}) ", mid);

            var delay = TimeSpan.FromSeconds(10);
            var cancellationTokeSource = new CancellationTokenSource(delay);

            var code = new ConcurrentCode();
            var threads = new[]
            {
                new Thread(new ThreadStart(code.SleepWhileCodeIsNotDone)),
                new Thread(() => code.SleepWhileCancellationIsNotRequested(cancellationTokeSource.Token)),
                new Thread(code.DoSleepForLongTime),
            };

            for (int i = 0; i < threads.Length; i++)
                threads[i].Start();

            Thread.Sleep(3000);

            bool alive = threads[2].IsAlive;
            if (alive)
            {
                Console.WriteLine($"Primary: Thread {{0}} is alive.", threads[2].ManagedThreadId);
            }

            code.done = true;
            threads[2].Interrupt();

            for (int i = 0; i < threads.Length; i++)
            {
                threads[i].Join();
            }

            Console.ForegroundColor = ConsoleColor.Red;
            Console.WriteLine("Main: All threads have terminated.");

            Console.ResetColor();
        }
    }
}

Run the Project

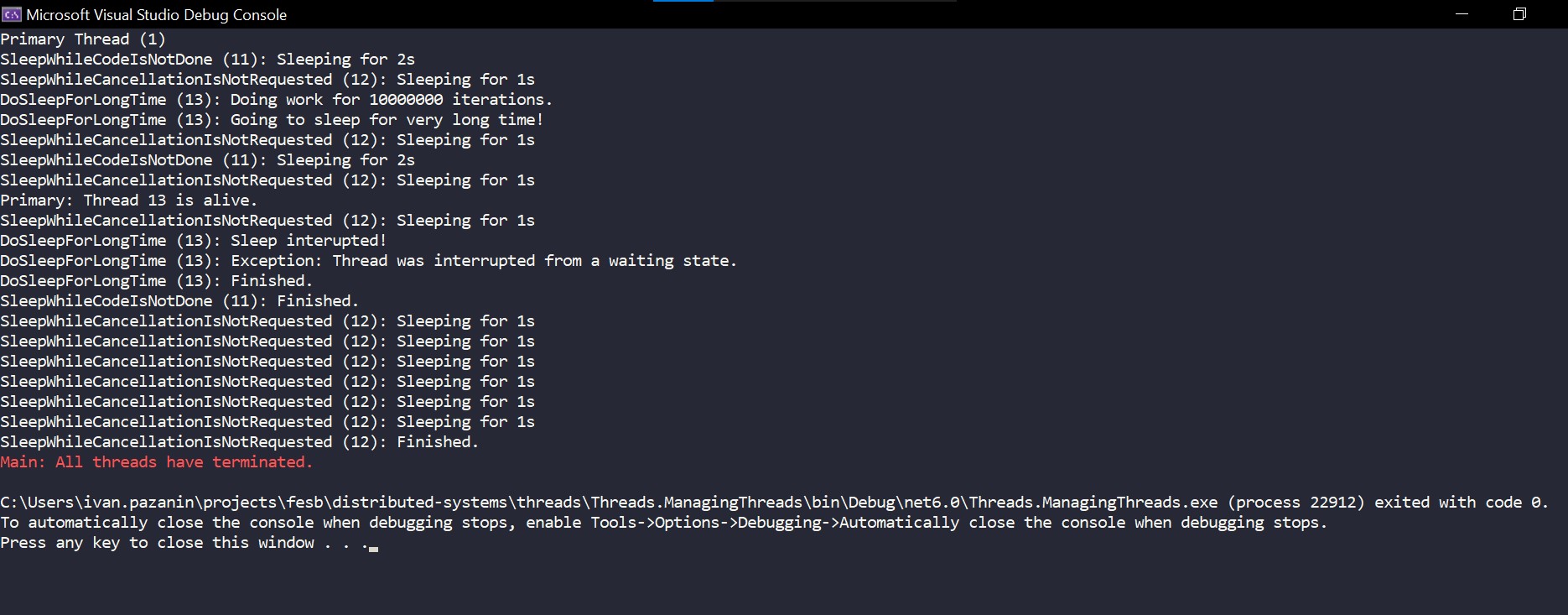

Execute the project and the output similar to the following will appear:

managing-threads-output

Exercise 4: Using Pools

In this exercise you will use threads from the pool.

Creating and destroying threads is an expensive operation. Each CLR process has a thread pool that can be reused by the application. When a pool thread has completed the work it is not destroyed. Instead, it is returned to the pool and stays there in an idle state.

The features of pool threads:

Run with the normal priority
Run always as Background
Used for short-running tasks
Cannot be aborted prematurely using Abort or Interrupt.

If you need a thread with different features than those listed above use dedicated threads (created with class Thread)!

To invoke an operation using a pool thread you can call method QueueUserWorkItem from class ThreadPool.

If the thread method throws an exception that is unhandled the CLR terminates the process.

Create a Project

Create a C# Console project, named Threads.UsingPools in solution Threads.

dotnet new console --name Threads.UsingPools
dotnet sln add Threads.UsingPools/Threads.UsingPools.csproj

Add following namespaces to class Program:

using System;
using System.Threading;

Add following fields to class Program

private static readonly Random random = new();
private static readonly AsyncLocal<string> localData = new();

Implement method DoCompute in class Program:

static void DoCompute(object? state)
{
    var managedThreadId = Environment.CurrentManagedThreadId;
    var name = localData.Value;

    Console.WriteLine($"Thread {managedThreadId}, State {state}, Name = \"{name}\"  ");
    Thread.Sleep(random.Next(1000, 1500));
}

Implement method Main in class Program:

public static void Main()
{
    localData.Value = "Ana";

    for (int i = 0; i < 10; i++)
    {
        Thread.Sleep(random.Next(1000, 3000));
        if (i == 5)
        {
            ExecutionContext.SuppressFlow();
        }
        ThreadPool.QueueUserWorkItem(DoCompute, i);
    }
    Console.WriteLine("Press any key");
    Console.ReadKey();
}

Run the Project

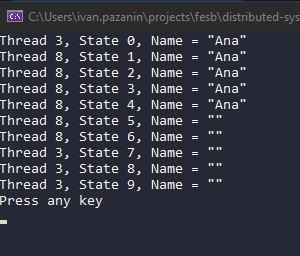

Execute the project and the output similar to the following will appear:

using-thread-pools-output

Exercise 5: Using Tasks

In this exercise you will spawn threads using class Task.

Using a thread from the pool the programmers doesn't know (there is no built-in support) about:

When a thread has completed the execution
What is the return value from the thread

Class Task overcomes the previous shortcomings.

A Task constructor receives:

a delegate to the operation to be executed in a thread
optionally, a CancellationToken object that is used
optionally, creation options

The return value is generic type specified when we construct a Task<T>.

To distinguish a completed task from the faulting one an OperationCanceledException can be thrown.

Task's methods:

Start
- starts a task
Run
- creates and starts a task
Wait
- waits (blocks) for the task to complete. If the operation in the task throws an exception the thread pool raises an exception in the Wait* or Result methods.
WaitAny
- waits for any task in the array to complete
WaitAll
- Waits for all tasks in the array to complete
WhenAll
- Returns task which is completed when all tasks in the array complete
Result
- returns a value from the thread

Create a Project

Create a C# Console project, named Threads.UsingTasks in solution Threads.

dotnet new console --name Threads.UsingTasks
dotnet sln add .\Threads.UsingTasks\Threads.UsingTasks.csproj

Use the following namespaces in file Program.cs:

using System;
using System.Threading;
using System.Threading.Tasks;

Add method DoCompute to class Program:

private static int DoCompute(int num, CancellationToken token)
{
    var managedThreadId = Thread.CurrentThread.ManagedThreadId;
    var total = 0;
    for (int i = 0; i < num; i++)
    {
        total += i;

#if (false)
        if (token.IsCancellationRequested)
        {
            break;
        }
#else
        token.ThrowIfCancellationRequested();
#endif

        Console.WriteLine($"Thread {managedThreadId}, i: {i} total= {total}");
        Thread.Sleep(100);
    }
    return total;
}

Implement method Main in class Program:

    public static void Main()
    {
        var managedThreadId = Environment.CurrentManagedThreadId;

        using var cancellationTokenSource = new CancellationTokenSource();
        cancellationTokenSource.Token.Register(() => Console.WriteLine($"Thread {managedThreadId}: Canceled!"));

        var task = new Task<int>(() => DoCompute(100, cancellationTokenSource.Token), cancellationTokenSource.Token);
        task.Start();

        Thread.Sleep(2000);

        cancellationTokenSource.Cancel();

        try
        {
            task.Wait();
            var result = task.Result;
            Console.WriteLine($"Thread {managedThreadId} result: {result}");
        }
        catch (AggregateException exception)
        {
            Console.WriteLine($"Thread {managedThreadId} Exception: {exception.Message} ");
        }
    }

Run Project

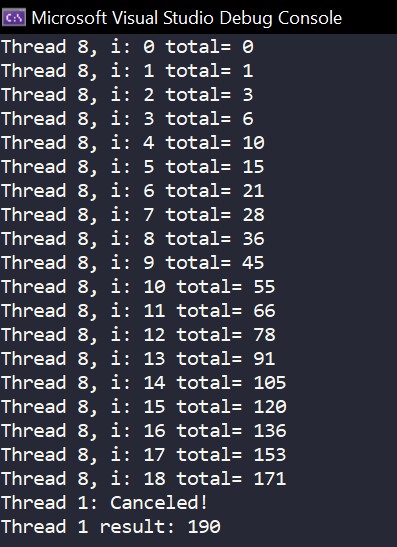

Execute the project and the output similar to the following will appear:

using-tasks-output

Exercise 6: Provoking Races

In this exercise you will create threads that will execute shared code which executions will result in a race condition.

Each thread can have an assigned priority which is relative to the process priority.

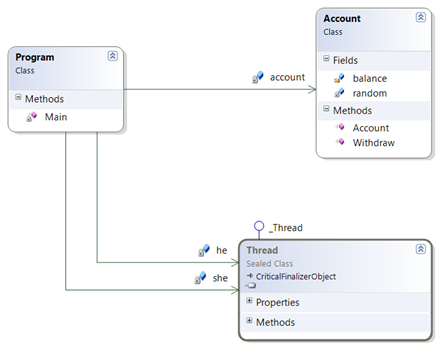

Here is the UML class diagram of the classes you will implement:

provoking-races-uml

Creating Project

Create a C# Console project, named Threads.ProvokingRaces in solution Threads.

dotnet new console --name Threads.ProvokingRaces
dotnet sln add Threads.ProvokingRaces/Threads.ProvokingRaces.csproj

Add following namespaces to class Program

using System;
using System.Threading.Tasks;
using System.Collections.Generic;

Add fields to class Program

private const int IncrementAmount = 10000;
private static int sum = 0;
private static readonly object incrementLock = new();

Implement Method IncrementSumSynchronously in class Program:

private static void IncrementSumSynchronously()
{
    for (var i = 0; i < IncrementAmount; i++)
    {
        sum++;
    }
    Console.WriteLine($"Sum value: {sum}");
}

Implement Method IncrementSumParallel in class Program:

private static void IncrementSumParallel()
{
    var allIncrementTasks = new List<Task>();
    for (var i = 0; i < IncrementAmount; i++)
    {
#if(true)
        var incrementTask = new Task(() => sum++);
#else
        var incrementTask = new Task(() =>
        {
            lock (incrementLock)
            {
                sum++;
            }
        });
#endif
        incrementTask.Start();
        allIncrementTasks.Add(incrementTask);
    }

    var allTasksFinishedTask = Task.WhenAll(allIncrementTasks);

    allTasksFinishedTask.Wait();

    Console.WriteLine($"Sum value: {sum}");
}

Implement Method Main in class Program:

public static void Main()
{
    IncrementSumSynchronously();
    sum = 0;
    IncrementSumParallel();
}

Run Project

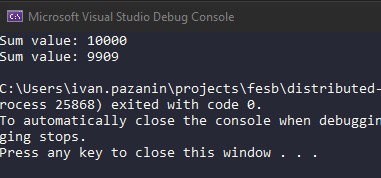

Execute the project and the output similar to the following will appear:

provoking-races-output

Exercise 7: Using async/await

In this exercise you will use async await statements to write asynchronous code ins synchronous matter.

The Task asynchronous programming model (TAP) provides an abstraction over asynchronous code. You write code as a sequence of statements, just like always. You can read that code as though each statement completes before the next begins. The compiler performs many transformations because some of those statements may start work and return a Task that represents the ongoing work.

The await keyword provides a non-blocking way to start a task, then continue execution when that task completes Methods which should be started in non-blocking way always must have async modifier in its signature. That signals to the compiler that this method contains an await statement; it contains asynchronous operations.

Create a Project

Create a C# Console project, named Threads.AsyncAwait in solution Threads.

dotnet new console --name Threads.AsyncAwait
dotnet sln add Threads.AsyncAwait/Threads.AsyncAwait.csproj

Add following namespaces to class Program:

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Threading.Tasks;

Add following fields to class Program:

private const int NumberOfIterations = 100;
private static readonly Stopwatch stopwatch = new();

Implement methods Work and WorkAsync in class Program to do blocking call for 100 milliseconds:

private static void Work()
{
    Task.Delay(WorkDuration).Wait();
}

private static async Task AsyncWork()
{
    await Task.Delay(WorkDuration);
}

Implement method DoWorkSynchronously in class Program to do call synchronously method Work for NumberOfIterations times:
Implement method DoWorkParallel in class Program:

private static async Task DoWorkParallel()
{
    var tasks = new List<Task>();
    for (var i = 0; i < NumberOfIterations; i++)
    {
        var task = new Task(() => Work());
        task.Start();
        tasks.Add(task);
    }
    await Task.WhenAll(tasks);
}

Implement method DoWorkParallelAsync in class Program:

private static async Task DoWorkParallelAsync()
{
    var tasks = new List<Task>();
    for (int i = 0; i < NumberOfIterations; i++)
    {
        var task = new Task(async () => await WorkAsync());
        task.Start();
        tasks.Add(task);
    }
    await Task.WhenAll(tasks);
}

Implement method Main in class Program:

public static async Task Main()
{
    // 20 seconds is getting too long
    if (NumberOfIterations < 20)
    {
        stopwatch.Restart();
        DoWorkSynchronously();
        stopwatch.Stop();
        var syncCodeDuration = stopwatch.Elapsed;
        Console.WriteLine($"Synchronous code Duration {syncCodeDuration}");
    }

    if (NumberOfIterations < 2000)
    {
        stopwatch.Restart();
        await DoWorkParallel();
        stopwatch.Stop();
        var parallelCodeDuration = stopwatch.Elapsed;
        Console.WriteLine($"Parallel blocking code duration {parallelCodeDuration}");
    }

    stopwatch.Restart();
    await DoWorkParallelAsync();
    stopwatch.Stop();
    var asyncParallelCodeDuration = stopwatch.Elapsed;
    Console.WriteLine($"Asynchronous parallel code duration {asyncParallelCodeDuration}");
}

Run Project

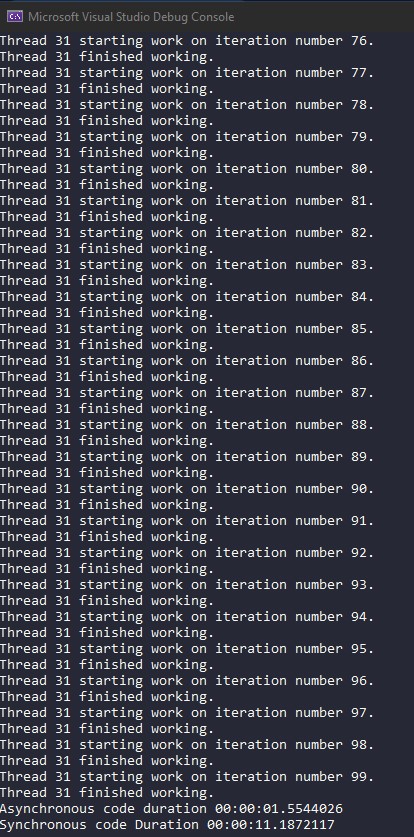

Execute the project and the output similar to the following will appear:

async-await-output

Increase value of NumberOfIterations and observe changes to execution times!

Threads

Table Of Contents​

Exercise 1: Creating Responsive UI​

Create a Project​

Run the Project​

Exercise 2: Creating Threads​

Create a Project​

Run the Project​

Exercise 3: Managing Threads​

Create a Project​

Run the Project​

Exercise 4: Using Pools​

Create a Project​

Run the Project​

Exercise 5: Using Tasks​

Create a Project​

Run Project​

Exercise 6: Provoking Races​

Creating Project​

Run Project​

Exercise 7: Using async/await​

Create a Project​

Run Project​

Table Of Contents

Exercise 1: Creating Responsive UI

Create a Project

Run the Project

Exercise 2: Creating Threads

Create a Project

Run the Project

Exercise 3: Managing Threads

Create a Project

Run the Project

Exercise 4: Using Pools

Create a Project

Run the Project

Exercise 5: Using Tasks

Create a Project

Run Project

Exercise 6: Provoking Races

Creating Project

Run Project

Exercise 7: Using async/await

Create a Project

Run Project
